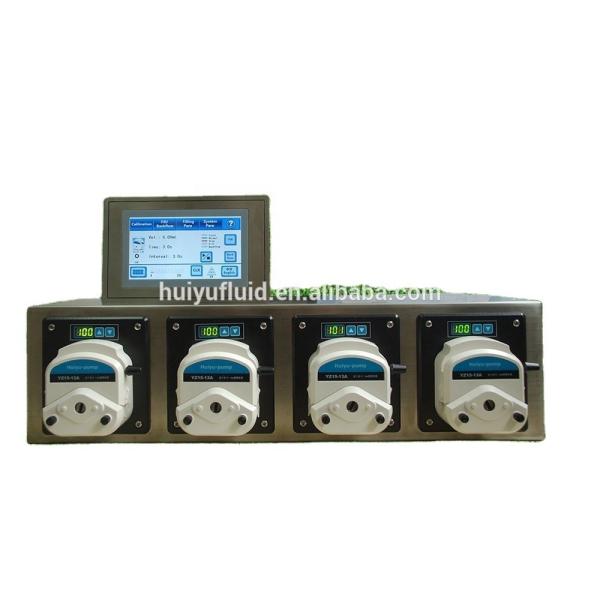

AC220V peristaltic pump dispensing and filling system for perfume filling machine
Volume range of filling: 1ml—100ml
Time range of filling: 0.5—30s
Motor speed:1-600rpm
Speed range: Calculate automatically according to the volume and
time of filling.
Back Suction Angle: 0—360°
Calibration: put the actual volume into the pump, it can make a
calibration automatically.
Adjust solution amount online: Users can adjust the solution amount
and percentage online
Start/stop control : contacts input (stop—filling when lack of bottles)
Memory Function: Repower the pump, it can keep the parameters
before power—down.
Communication Interface: RS485
Dimension: 800×200×174 (mm)
Available Power: 220VAC±10%/150W
Working condition temperature: 0℃—40℃
Relative Humidity : <80%
Weight:18.5Kg
IP Grade: IP31
Available Pump head | Filling Volume(ml) | Tubing specification | Filling Time(s) | repeatability error | Dispensing head ID(mm) | Production Capacity (pcs/min) | ||
YZ15-13A | 2-3 | 14# | 1-1.5 | ≤±1.5% | ≤1.5 | 30-24 | ||
3-6 | 19# | 1-2 | ≤2.0 | 30-20 | ||||
6-12 | 16# | 1-2 | ≤3.0 | 30-20 | ||||
12-20 | 25# | 1-1.6 | ≤3.0 | 30-23 | ||||
20-40 | 17# | 1-2 | ≤3.0 | 30-20 | ||||
YZ25-13A | 12-20 | 15# | 1-1.6 | ≤±1.5% | ≤3.0 | 30-23 | ||
20-40 | 24# | 1-2 | ≤±1.5% | ≤3.0 | 30-20 | |||
|
|
