| Brand Name : | Huiyu |
| Model Number : | YZ15 |
| Supply Ability : | 1000 Set/Sets per Week |
| Price : | $105.00/sets 1-4 sets |

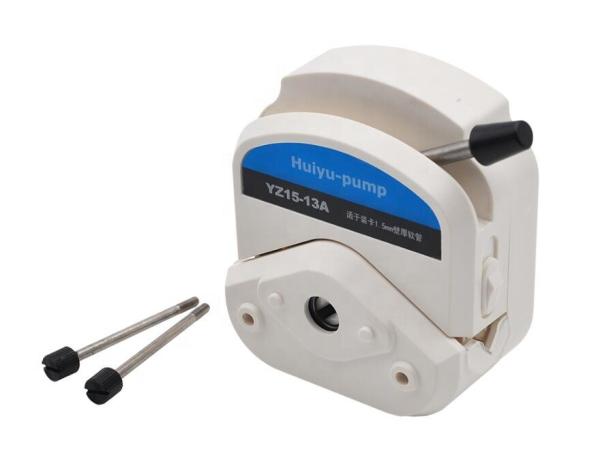

easy load YZ2515 peristaltic pump head
YZ15/ YZ25 series easy load pump head is made of PPS (Polyphenylene sulfide)or PSF (Polysalfone)
max flow rate: 2200ml/min
Model: YZ15/25 series
Classical design
Lab use, stackable pump heads
Character:
Its materials is PSF which has stable performance and high
temperature resistance (150 °C )
Resistant acid, soda, but not organic solvent
Inside metal parts are made from 304 stainless steel
Rollers working surface has been widened to reduce the grinding of
tubing, and enhanced the life of the tubing
Technical Parameters
| Model | Available tubing | Max flow rate(ml/min) | Speed range(rpm) | Rollers material | casing material | Rollers NO. | weight(kg) |
| YZ15-13A | 13#,14#,19#,16#,25#,17#18# | 2200 | ≤600 | 304 | PSU | 3 | 0.4 |
| YZ25-13A | 15#,24# | 1600 |
Other pump hea we can also supply
