    low cost BT100J peristaltic pump AC110V

    Product Description

    low cost peristaltic pump 110V

    Model: BT100J-1A

    low cost BT100J peristaltic pump AC110V


    low cost BT100J peristaltic pump AC110V


    Introduction

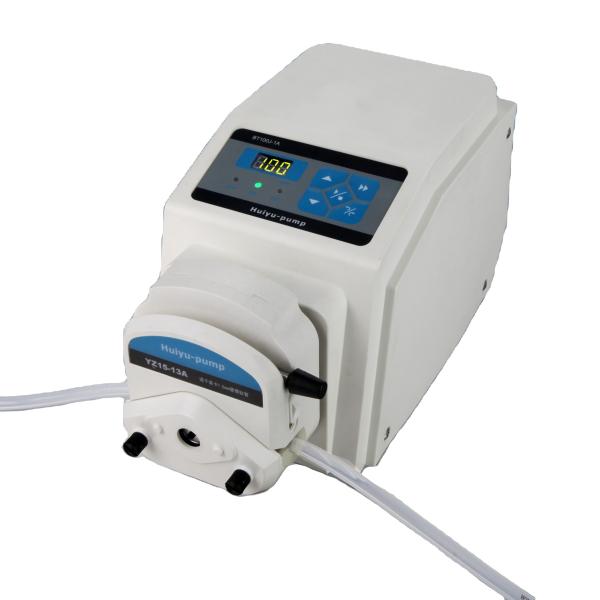

    BT100J-1A Precise peristaltic pump can be loaded pump head YZ15, YZ25,DG-1 and DG-2. and It can supply flow rates from 0.0002 to 380 ml/min. The motor speed can be adjusted manually or automatically through external control. Store the running parameters automatically. very easy to operate.It is the best selling economical peristaltic pump.


    - Speed: 0.1 to 100 rpm, reversible
    - Speed precision: 0.1 rpm
    - Speed control: Membrane keypad
    - Display: 3-digit LED displays current rpm
    - Communication interface: RS485
    - External control: Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
    - Power supply: AC 90V-260 V 50/60 Hz
    - Power consumption: ≤30 W
    - Operating condition: Temperature 0 to 40 ℃
    - Relative humidity < 80%
    - Dimensions (L×W×H): 243×151×157 (mm)
    - Drive weight: 2.5kg
    - IP rating: IP 31


    Technical Data Sheet

    Pump headModelAvailable tubingflow rate range (ml/min)
    YZ15-l3A13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm0.07-380ml/min
    YZ25-l3A15#, 24# wall thickness:2.5mm0.2-270ml/min
    DG10-lAwall thickness:0.8-1.0mm
    ID≤3.17mm
    A Refers to 6 rollers; B refers to 10 rollers
    0.00025-48ml/min
    DG10-1B0.0002-32ml/min
    DG10-2A0.00025-48ml/min
    (Single channel)
    DG10-2B0.0002-32ml/min
    (Single channel)
    BZ25-lA24#
    wall thickness:2.5mm
    0.26-260ml/min

    Tubing details

    low cost BT100J peristaltic pump AC110V

    low cost BT100J peristaltic pump AC110V

    Suitable pump head

    low cost BT100J peristaltic pump AC110V


    Accessories

    low cost BT100J peristaltic pump AC110V low cost BT100J peristaltic pump AC110V

    OEM option

    low cost BT100J peristaltic pump AC110V

    Packaging & Shipping

    1Piece in carton with foam plastic foam.


    Usually , the pumps will be delivered by DHL, TNT or UPS.

    Our Services

    1 year warranty for all of our pumps


    CE certificate

    low cost BT100J peristaltic pump AC110V

    low cost BT100J peristaltic pump AC110V
