Huiyuweiy(Beijing) Fluid Equipment Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Huiyu fluid |
| Model Number : | WT600L-1A |
| Certification : | RoHS |
| Supply Ability : | 100 Set/Sets per Week |
| Price : | $900.00 - $1,500.00/sets |

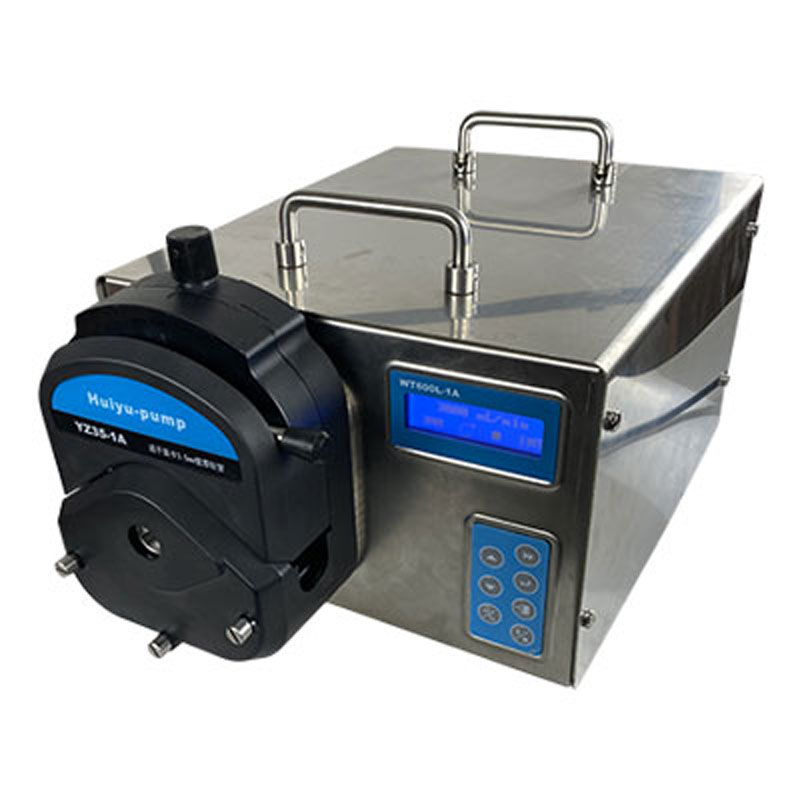

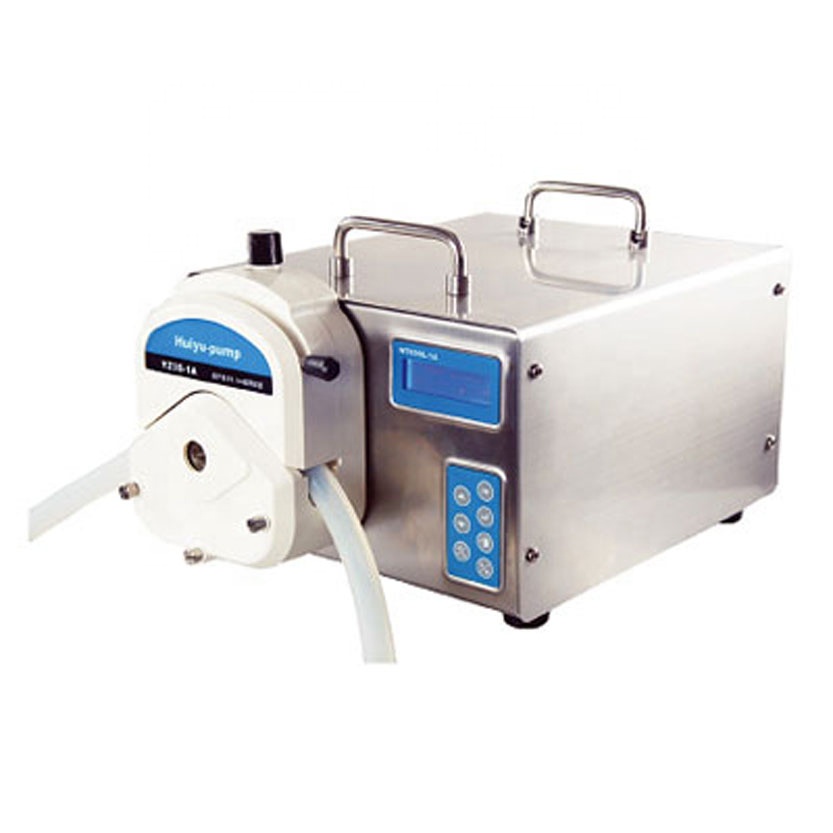

stainless steel housing industrial large flow rate peristaltic pumpml/min
WT600L-1A/YZ35-13A
Max flow rate:12000ml/min
Product description
It is an industrial large-flow peristaltic pump. The body is made of stainless steel, driven by a DC motor, and is more powerful. It is mostly used in harsh industrial occasions. It has the characteristics of positive and negative, start-stop control, convenient speed adjustment, etc.; working speed 10-600 rpm; cascadable double pump heads, suitable for continuous and stable transmission of large flow in industrial sites
Features
Automatic correction function
Membrane buttons can control start and stop, direction and speed
Can quickly fill and empty function
It can communicate with the host computer
External control signal can control start and stop, direction and speed
Power-down memory function
Different pump heads can be replaced
Technical indicators
Speed range: 10-600rpm, resolution lrpm; direction reversible
Adjustment method: membrane button adjustment
Display interface: flow mode, speed mode
Display mode: graphic dot matrix liquid crystal display
Communication method: RS485 half duplex
External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)
Applicable power supply: 176-264V AC, 50/60Hz
Maximum power: 320W
Working environment: ambient temperature 0-40 ° C, relative humidity <100%
Dimensions: 352*291.4*195.5 (length × width × height) mm
Weight: 10kg
Protection level: IP31

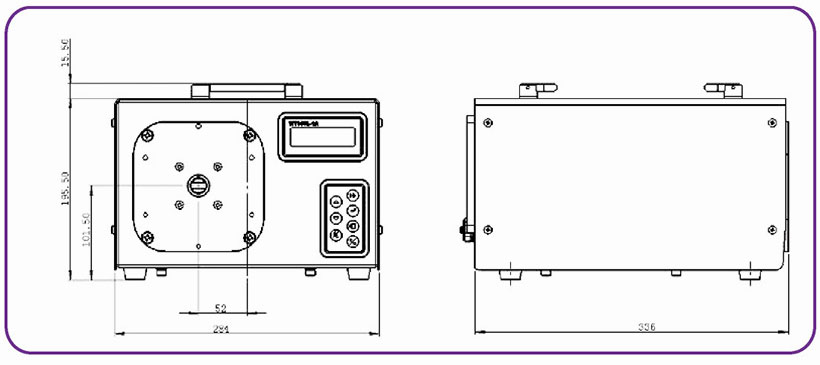

Dimensions
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
|
|
