    High IP rating large flow rate peristaltic pump for industrial application

    Ask Lasest Price
    Brand Name : Huiyu fluid
    Model Number : JL350J-1A
    Certification : RoHS
    Price : $1,000.00 - $1,850.00/sets
    • Product Details
    • Company Profile

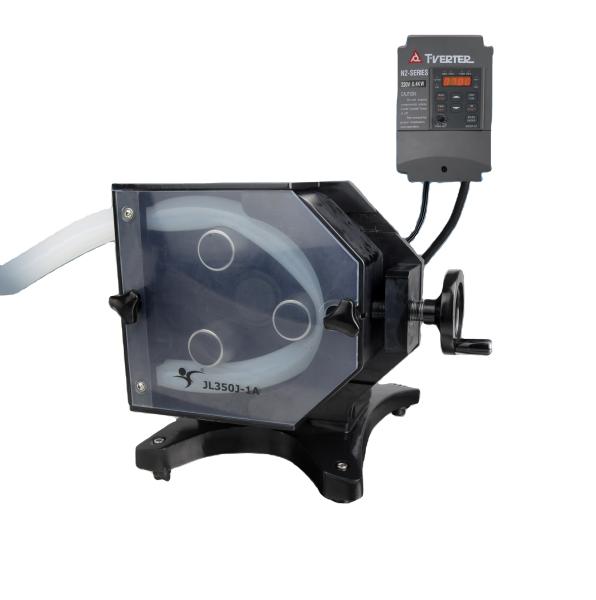

    High IP rating large flow rate peristaltic pump for industrial application

    Standard peristaltic pump JL350J-1A Flow rate≤40L/min

    High IP rating:55

    Product Description

    High IP rating large flow rate peristaltic pump for industrial application

    Features:

    • Mainly used in large flow for production AC gear motor drive
    • Speed adjustable by frequency convertor
    • Pump drive and control in split body to improve the IP rating
    • Central convex roller and concave pressing block to reduce the friction of tubing
    • Transparent cover for watch the running status of the pump
    • Adjustable pressing block
    • Split body in design for remote control,install and maintenance

    Technical parameter
    Speed: 30 to 350rpm, cw/ccw reversable
    Speed resolution: 0.6 rpm

    Operation: membrane key,external signal and communication.
    Display: frequency convertor LED
    Motor speed signal input: 0 to 5 V, 0 to 10 V, 4 to 20 mA signals
    Start/stop signal input:switching volume control
    CW/CCW signal input: switching volume control
    Communication port: RS485 and RS232
    Dimensions (L×W×H): 417X401X321 (mm)
    Power supply: AC 220V±10%

    Power consumption:400aw
    Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
    IP rating: IP 55
    Drive weight: 32 kg

    Technical Data Sheet

    Pump DrivePump head modelAvailable tubingflow rate range (ml/min)Weight
    JL350J-1Akz48/6388#1.3-1532kg
    92#3-40

    OEM option

    High IP rating large flow rate peristaltic pump for industrial application

    Accessories

    High IP rating large flow rate peristaltic pump for industrial application

    CE certificate

    High IP rating large flow rate peristaltic pump for industrial application

    Web:www.avtechnology.co.uk

    TRACKING No:GB/1067/4817/13
